Stationary Concrete Batching Plant (RSP Series)
For yards that run every day of the year. The RSP pairs a modular steel structure with PLC control and SCADA software, so you see every batch, every customer and every cubic metre in your reports.
- 30 to 120 m³/hr
- Turbo Pan, Twin Shaft or Planetary
- SCADA reports
- Modular layout
- Models
- RSP-30 to RSP-120
- Aggregate storage
- 24 to 60 m³
- Discharge height
- 4 m
Built for Long-Term, High-Volume Production
The RSP is our largest concrete plant. Four inline aggregate bins feed a collecting conveyor and an inclined belt to the mixing tower. Cement comes from silos by screw conveyor, and cement, water and admixture are each weighed separately. Discharge at 4 m lets transit mixers load directly.
The modular structure can be arranged to suit the shape of your land and any buildings already on it.
- 30–120m³/hrOutput
- 6Output levels
- 4Inline aggregate bins
- 24–60m³Aggregate storage
- 4mDischarge height
- SCADAProduction reports
What Makes the RSP Different
Heavy-duty structure
Engineered for years of daily production.
Modular design
Adapts to different layout requirements on your plot.
PLC with SCADA software
Run the plant and pull production, material and batch reports.
Six output levels
30, 45, 60, 75, 90 and 120 m³/hr. Larger custom builds on request.
Mixer choice
Turbo Pan or Planetary up to 45 m³/hr; Twin Shaft or Planetary at every size.
Separate weighing
Dedicated weighers for cement, water and admixture.
Customisable
Silo count, bin layout and accessories to suit your project.

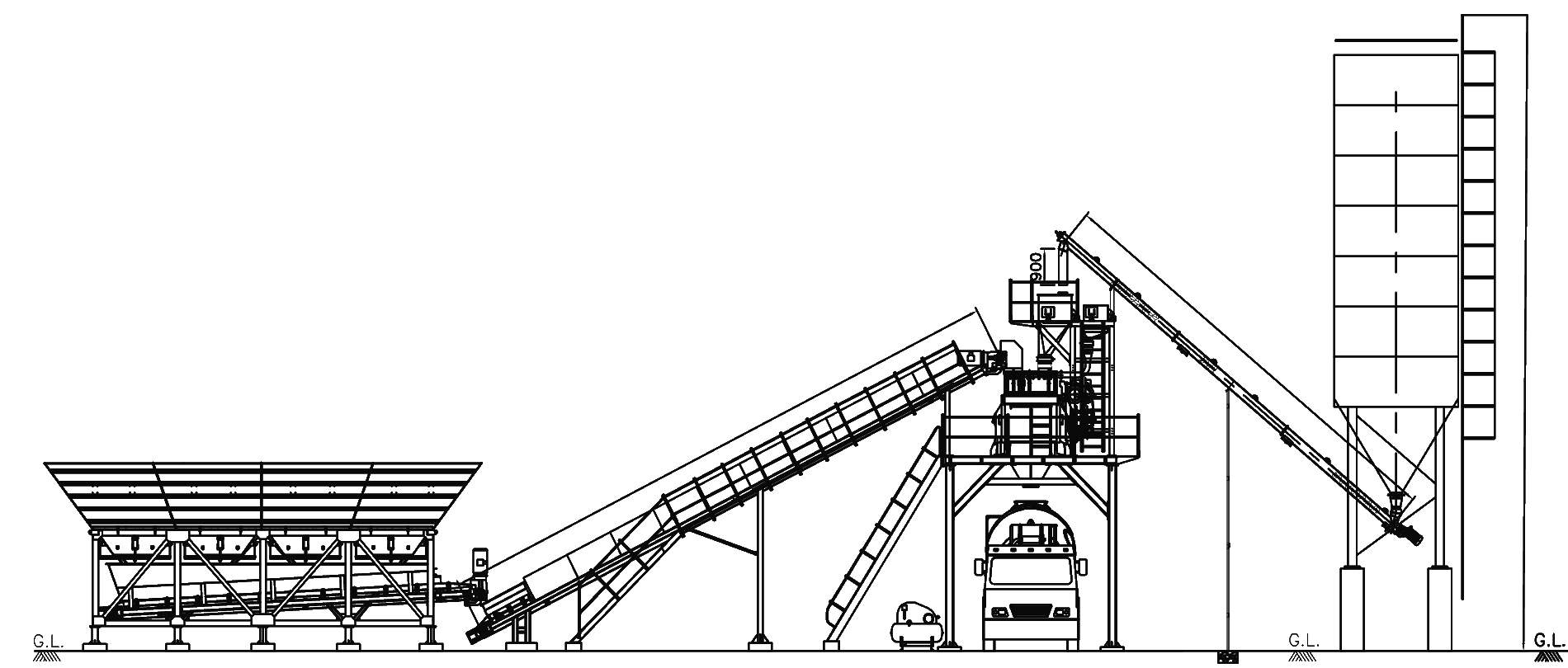

From Bins to Silo, One Line
Elevation, RSP Series
- Four inline bins
- Inclined belt conveyor
- Mixing tower · 4 m discharge
- Cement silo
Mixer Options Across the RSP Range
RSP-30 and RSP-45 are the only sizes that offer all three mixer types; RSP-60 and above are for higher-volume yards.
Read the mixer guide| Model | Turbo Pan | Twin Shaft | Planetary |
|---|---|---|---|
| RSP-30All three | Yes | Yes | Yes |
| RSP-45All three | Yes | Yes | Yes |
| RSP-60 | No | Yes | Yes |
| RSP-75 | No | Yes | Yes |
| RSP-90 | No | Yes | Yes |
| RSP-120 | No | Yes | Yes |
RSP Series Technical Specifications
| SPECIFICATION | RSP-30 | RSP-45 | RSP-60 | RSP-75 | RSP-90 | RSP-120 |
|---|---|---|---|---|---|---|
| Output (m³/hr) | 30 | 45 | 60 | 75 | 90 | 120 |
| Inline bins | 4 | 4 | 4 | 4 | 4 | 4 |
| Collecting conveyor | Yes | Yes | Yes | Yes | Yes | Yes |
| Aggregate storage (m³) | 24 | 32 | 40 | 50 | 60 | 60 |
| Cement weigher | Yes | Yes | Yes | Yes | Yes | Yes |
| Screw conveyor for cement | Yes | Yes | Yes | Yes | Yes | Yes |
| Cement feeding hopper | Optional | Optional | Optional | Optional | Optional | Optional |
| Water weigher and pump | Yes | Yes | Yes | Yes | Yes | Yes |
| Admixture weigher and pump | Yes | Yes | Yes | Yes | Yes | Yes |
| Air compressor | Yes | Yes | Yes | Yes | Yes | Yes |
| Control panel | Fully automatic | Fully automatic | Fully automatic | Fully automatic | Fully automatic | Fully automatic |
| Discharge height (m) | 4 | 4 | 4 | 4 | 4 | 4 |
| Total connected load [HP or kW] | 58.35 | 96.35 | 126.1 | 168.6 | 211.35 | 277.35 |
Mixer type by model is shown in the table above. Specifications may change as part of our continuous improvement.

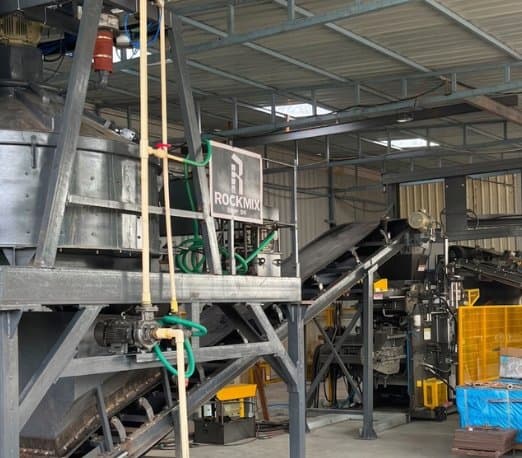

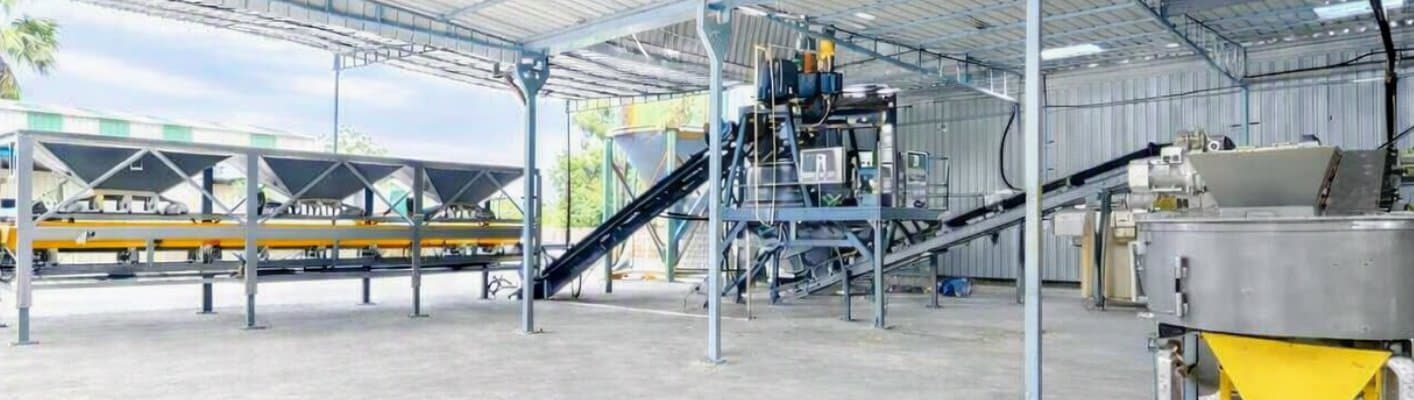

RSP-30 With Planetary Mixer for Block Making
We recently installed an RSP-30 fitted with our in-house Planetary Pan mixer to feed a concrete block making machine. The planetary action gives a uniform, consistent mix and short cycle times, and it handles the different concrete recipes that block and paver production needs.
The plant was laid out under a shed to work directly with the block machine.
- Model
- RSP-30
- Mixer
- Planetary Pan, made in-house
- Feeds
- Concrete block machine
Where the RSP Earns Its Keep
- Ready-mix concrete (RMC) plants
- Precast, block and paver factories
- Large infrastructure projects running for several years
- Builders and contractors with their own central concrete yard
Know Exactly What Your Plant Produced
The RSP's SCADA software logs each batch and builds reports on production, material use and operations. That record helps you check cement use against output and answer customer queries about any load.
