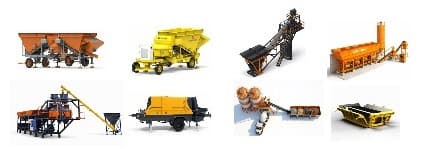

The full plant on one heavy-duty chassis: bins, conveyor, pan mixer, cement hopper and control panel. Only PCC work is needed, and a tractor can tow it with the optional tyre axle.
Our smallest plant, with two bins and tyres and axle as standard. Made for narrow lanes, hill sites and small daily pours.
Inline aggregate bins with separate weighers for cement, water and admixture. Needs only a PCC bed, comes with pre-packed wiring and starts quickly.
A raised mixing platform with a 4.1 m discharge height, so transit mixers load directly under the mixer. Sits on an RCC bed, with no deep foundation.
Our highest-output concrete plant for RMC, precast and long projects. Modular layout, cement silos and SCADA software for production reports.
A continuous pugmill plant for WMM, GSB and CTAB layers on road and railway projects. Choose a gob hopper or storage silo at discharge.
Alongside our batching and road plants, Rockmix manufactures the supporting equipment your site needs.
Pumps concrete from the batching plant to the pour point on site.
Full specifications coming soon.
Specifications may change as part of our continuous improvement process.
| Feature | RMP-2BMini Mobile | RMPMobile | RCMPInline Compact | RCPCompact | RSPStationary |
|---|---|---|---|---|---|
| Output (m³/hr) | 15, 18, 20 | 18, 20, 25, 30 | 20, 25, 30, 45 | 20, 25, 30, 45, 60, 75, 90 | 30, 45, 60, 75, 90, 120 |
| Mixer | Pan | Pan | Turbo Pan, Twin Shaft, Planetary | Turbo Pan, Twin Shaft, Planetary | Turbo Pan, Twin Shaft, Planetary |
| Aggregate bins | 2 | 3 or 4 | 3 or 4 inline | 4 | 4 inline |
| Aggregate storage | 2 to 2.5 m³ per bin | 2.5 to 3.5 m³ per bin | 10.5 or 14 m³ total | 16 to 60 m³ total | 24 to 60 m³ total |
| Base needed | None | None | PCC bed | RCC bed | Foundation |
| Wheels | Standard | Optional | Optional | No | No |
| Discharge height | Central | Central | 1.5 m | 4.1 m | 4 m |
| Control | Fully automatic PLC | Fully automatic PLC | Fully automatic PLC | Fully automatic PLC | PLC with SCADA |
| Details | View RMP-2B → | View RMP → | View RCMP → | View RCP → | View RSP → |
A vertical-shaft mixer with rotating arms in a round pan. Simple, easy to service and well suited to general site concrete at lower outputs.
Standard on RMP and RMP-2B
Two horizontal shafts turn against each other and mix fast. The usual choice for high outputs and ready-mix concrete.
Available on RCMP, RCP and RSP
Mixing tools spin on their own axis while also travelling around the pan, so no corner is missed. Gives a very even mix and is the favourite for blocks, pavers and precast.
Our Planetary Pan mixer is designed and made in-house
This sets the series and model.
Frequent moves point to RMP or RMP-2B. A fixed yard points to RSP.
Tight sites suit the mobile and compact series.
Into a pump, a transit mixer or a dumper. This decides discharge height and whether you need a load-out conveyor.
Each model has a stated connected load and recommended DG set size.
Tell us your output, site and concrete type. We will suggest one or two plants that fit and explain why.
