Compact Concrete Batching Plant (RCP Series)
Drive the transit mixer in, fill it, drive it out. The RCP lifts the mixer onto a raised platform with a 4.1 m discharge height, and fits seven output levels into a footprint small enough for crowded sites.
- 20 to 90 m³/hr
- Pan, Twin Shaft or Planetary
- 4.1 m discharge
- No deep foundation
- Models
- RCP-20 to RCP-90
- Aggregate storage
- 16 to 60 m³
- Base
- RCC bed
Compact Footprint, Truck-Height Discharge

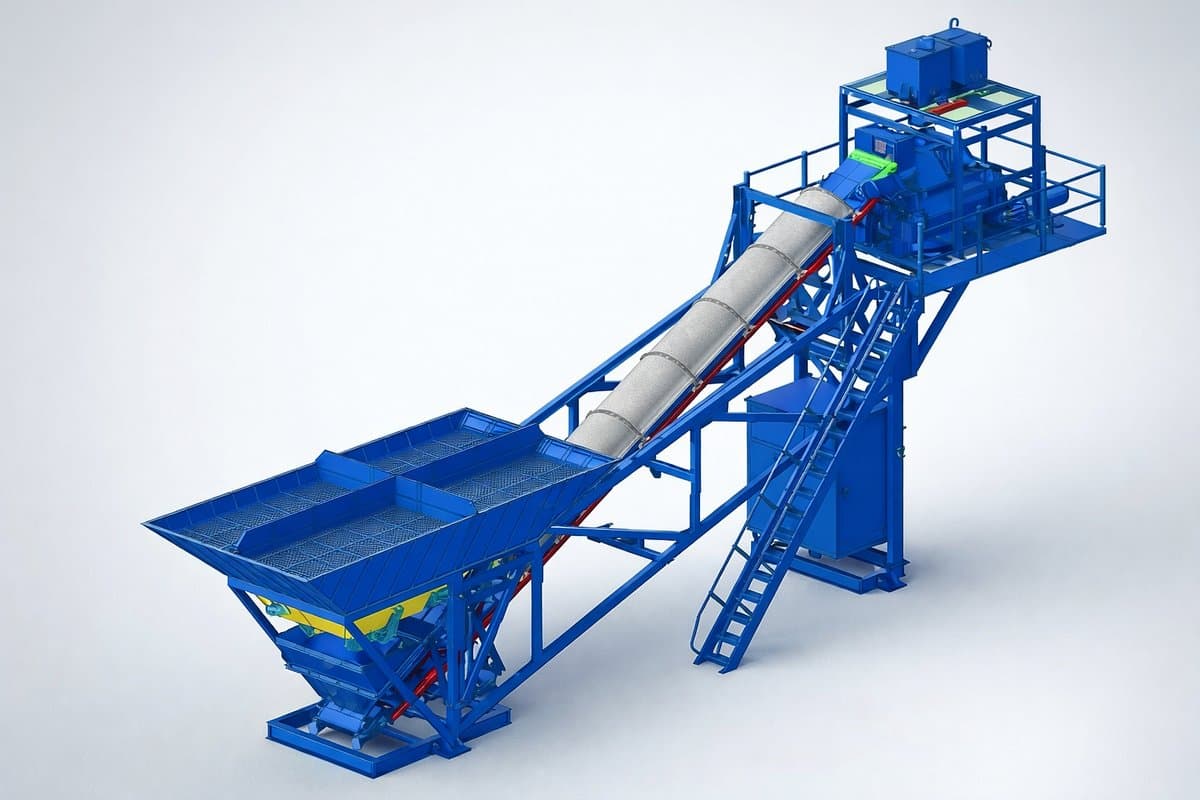

In the RCP, four aggregate bins feed an inclined belt conveyor that runs up to the mixing platform. The mixer sits high enough for a transit mixer to park directly underneath. Cement, water and admixture are weighed separately before they enter the mixer.

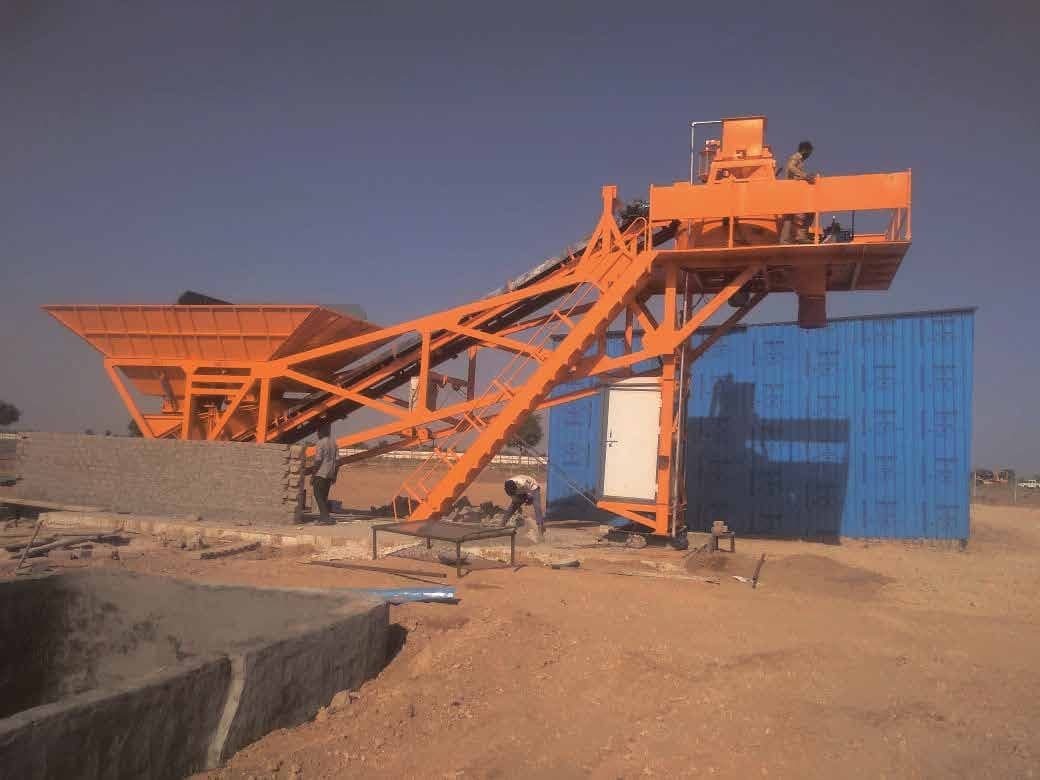

The plant stands on an RCC bed instead of a deep foundation, and its compact layout lets it work where a full stationary plant will not fit.
- 20–90m³/hrOutput
- 7Output levels
- 4Aggregate bins
- 16–60m³Aggregate storage
- 3Mixer types
- RCCBed only, no deep foundation
Built for Busy, Space-Tight Sites
Foundation-free installation
Erect the plant on an RCC bed; no deep foundation needed.
Easy transport
Designed to be shipped to any location without special handling.
Plug-and-play operation
Quick setup with minimal technical intervention.
Space-saving design
Installs in confined spaces and city plots.
High-precision weighing
Accurate dosing of every ingredient for consistent mix quality.
4.1 m discharge height
Transit mixers load directly under the mixer.
User-friendly control panel
Easy operation and live monitoring.
Low maintenance
Less downtime between pours.
Customisable
Options to match your project needs.

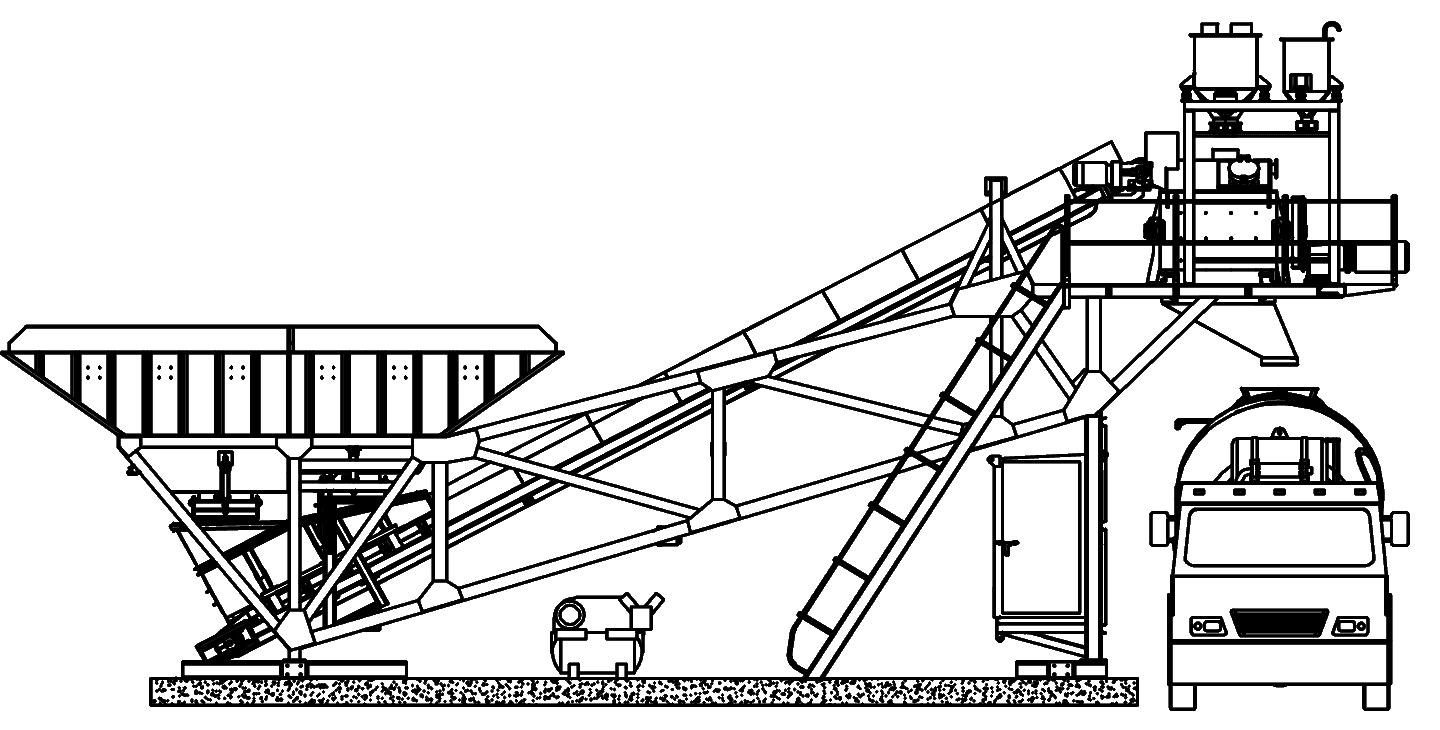

Bins, Belt and a Raised Mixer
Elevation, RCP Series
4.1 m- Four aggregate bins
- Inclined belt conveyor
- Raised mixing platform
Pick the Mixer That Suits Your Concrete
RCP-30 is the smallest model that offers all three mixer choices, so it suits RMC units that want room to change their product mix.
Read the mixer guide| Model | Turbo Pan | Twin Shaft | Planetary |
|---|---|---|---|
| RCP-20 | Yes | Yes | No |
| RCP-25 | Yes | Yes | No |
| RCP-30 | Yes | Yes | Yes |
| RCP-45 | Yes | Yes | Yes |
| RCP-60 | No | Yes | Yes |
| RCP-75 | No | Yes | Yes |
| RCP-90 | No | Yes | Yes |
RCP Series Technical Specifications
| SPECIFICATION | RCP-20 | RCP-25 | RCP-30 | RCP-45 | RCP-60 | RCP-75 | RCP-90 |
|---|---|---|---|---|---|---|---|
| Output (m³/hr) | 20 | 25 | 30 | 45 | 60 | 75 | 90 |
| Number of bins | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Aggregate storage (m³) | 16 | 20 | 20 | 32 | 40 | 50 | 60 |
| Cement weigher | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Screw conveyor for cement | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Cement feeding hopper | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
| Water weigher and pump | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Admixture weigher and pump | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Air compressor | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Discharge height (m) | 4.1 | 4.1 | 4.1 | 4.1 | 4.1 | 4.1 | 4.1 |
| Total connected load [HP or kW] | 48.3 | 53.5 | 60.75 | 81.45 | 101.1 | 130.75 | 168.5 |
Mixer type by model is shown in the table above. Specifications may change as part of our continuous improvement.
Who Buys the RCP
Contractors supplying concrete by transit mixer to several pour points
Medium RMC units starting at 20 to 30 m³/hr with room to grow to 90
Precast and block yards that want a Planetary mixer
Infrastructure sites with limited space for a stationary plant
Configure Your RCP
- Turbo Pan, Twin Shaft or Planetary mixer (see table above)
- Cement feeding hopper for bagged cement, or connection to a cement silo
- Control cabin and panel layout to suit your site
- Other changes on request
RCP Series: Common Questions
Let's Size Your RCP
Tell us how many transit mixers you plan to run and your daily volume. We will recommend the RCP model and mixer.
