Inline Compact Mobility Concrete Batching Plant (RCMP Series)
The weighing accuracy of a stationary plant in a frame you can bolt together on a simple PCC bed. Wiring comes pre-packed from our works, so the plant is ready to run soon after it lands at site.
- 20 to 45 m³/hr
- 3 mixer options
- PCC base only
- Plug-and-play
- Models
- RCMP-20 · 25 · 30 · 45
- Aggregate storage
- 10.5 or 14 m³
- Discharge height
- 1.5 m
A Mid-Size Plant That Sets Up Fast

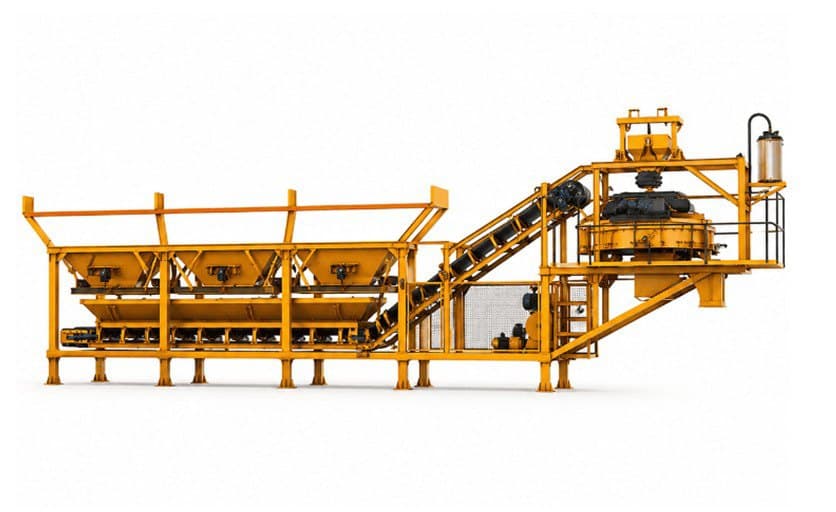

The RCMP lines up its aggregate bins in a row (inline), drops the weighed material onto a collecting conveyor and sends it up to the mixer. Cement, water and admixture each have their own weigher. That separate weighing is what lets the RCMP hold mix quality across long pours.
It is modular, so it can be assembled and dismantled for the next project without cutting or re-welding. A mobility arrangement can be added if you plan to move it often.
- 20–45m³/hrOutput
- 3 or 4Inline bins
- 10.5 / 14m³Aggregate storage
- 3Mixer types to choose from
- 4Separate weighers
- 1.5mDischarge height
What You Get With the RCMP
Foundation-less design
Only a PCC bed is needed under the plant.
Plug-and-play start
Quick start-up with minimal technical work at site.
Modular construction
Easy assembly and dismantling between projects.
Pre-packed wiring
Electricals come wired from our works, cutting installation errors.
Separate weighers
Dedicated weighing for aggregates, cement, water and admixture.
Mixer of your choice
Turbo Pan, Twin Shaft or Planetary.
Discharge height to suit your site
Set to match your concrete pump or dumper.
Optional mobility kit
For teams that move the plant regularly.
Heavy-duty structure
Stable performance and long service life.
Low maintenance
Energy-efficient design with easy access to wear parts.
Inside the RCMP Batching Cycle

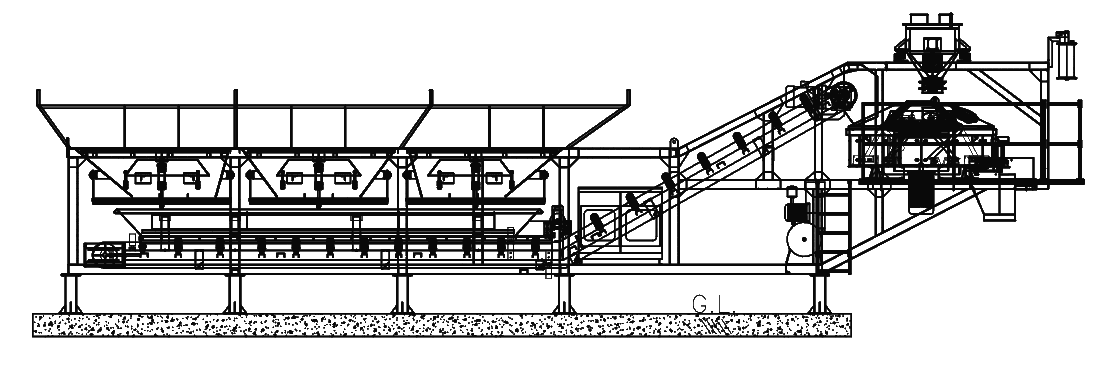

Elevation, RCMP Series
- Inline bins and collecting conveyor
- Inclined conveyor
- Weighers and mixer
- 01
Aggregates are loaded into 3 or 4 inline bins.
- 02
Each bin feeds its weighed share onto the collecting conveyor.
- 03
The conveyor carries the aggregates up to the mixer.
- 04
Cement comes in by screw conveyor and is weighed separately.
- 05
Water and admixture are weighed and pumped in.
- 06
The air compressor operates the gates; the PLC controls the sequence.
- 07
Concrete discharges at 1.5 m into a pump, dumper or the optional load-out conveyor.
RCMP Series Technical Specifications
| SPECIFICATION | RCMP-20 | RCMP-25 | RCMP-30 | RCMP-45 |
|---|---|---|---|---|
| Output | 20 m³/hr | 25 m³/hr | 30 m³/hr | 45 m³/hr |
| Mixer type | Turbo Pan / Twin Shaft / Planetary | Turbo Pan / Twin Shaft / Planetary | Turbo Pan / Twin Shaft / Planetary | Turbo Pan / Twin Shaft / Planetary |
| Inline bins | 3 or 4 | 3 or 4 | 3 or 4 | 3 or 4 |
| Collecting conveyor | Yes | Yes | Yes | Yes |
| Aggregate storage | 10.5 or 14 m³ | 10.5 or 14 m³ | 10.5 or 14 m³ | 10.5 or 14 m³ |
| Cement weigher | Yes | Yes | Yes | Yes |
| Screw conveyor for cement | Yes | Yes | Yes | Yes |
| Cement feeding hopper | Optional | Optional | Optional | Optional |
| Water weigher and pump | Yes | Yes | Yes | Yes |
| Admixture weigher and pump | Yes | Yes | Yes | Yes |
| Air compressor | Yes | Yes | Yes | Yes |
| Control panel | Fully automatic | Fully automatic | Fully automatic | Fully automatic |
| Mobility | Optional | Optional | Optional | Optional |
| Discharge height | 1.5 m | 1.5 m | 1.5 m | 1.5 m |
| Load-out conveyor | Optional | Optional | Optional | Optional |
| Total connected load [HP or kW] | 43.35 | 43.35 | 53.35 | 63.35 |
Specifications may change as part of our continuous improvement.
Projects That Suit the RCMP
Building and township projects that need 20 to 45 m³/hr for months at a time
Contractors who want stationary-plant weighing without heavy civil work
Sites where the plant feeds a concrete pump directly
Teams that dismantle and reuse the plant on the next project
Configure Your RCMP
- Turbo Pan, Twin Shaft or Planetary mixer
- 3-bin or 4-bin inline layout
- Cement feeding hopper for bagged cement
- Mobility arrangement
- Load-out conveyor
- Discharge height set to your pump or dumper
RCMP Series: Common Questions
Plan Your RCMP Setup With Us
Send us your site layout and pour schedule. We will suggest the model, mixer and discharge height that fit.
